- Inside Diameter - 2" Inch
- Outside Diameter - 2.28 Inches
- Working Pressure - 65 PSI
- Vacuum Rating - 29 in/Hg
- Minimum Bend Radius - 8" Inches
- Hose Burst Pressure - 242PSI @ 50°F / 199 PSI @ 96°F / 128 PSI @ 122°F
- Length - Choose Up To 100 Feet (Increments of 5)
- Weight - 0.55 LBS Per Foot (Uncoupled)
- Couplings - 2" Inch Female x Male Aluminum Camlock Fittings
- Material - PVC Tube With Rigid PVC Helix
Temperature Range - (-) 10º F to (+) 140º F
- Color - Green

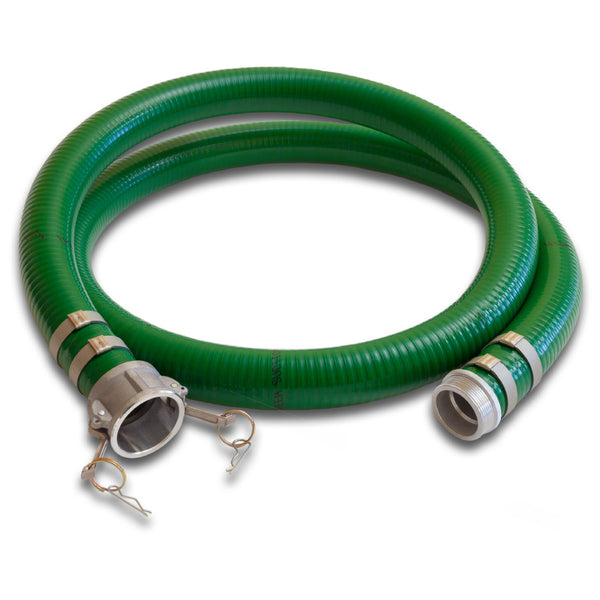

2" Inch Camlock x NPT Green Suction Hose For Industrial Heavy Duty Applications
The green PVC suction hose is the most universal suction hose available and is suited for most applications. It's tough duty, long lasting, and reliable enough for industrial jobs. Typical applications include residential, agriculture, drain lines, water trucks, mining, general trash pumps, dewatering pumps and more.
Tough Reliable PVC Materials At Any Length You Need
High strength reinforced PVC will get the job done. It's lightweight properties allow for easy handling and transportation without sacrificing quality. Reinforced PVC is long lasting and doesn't degrade with most chemicals and will not break down in extreme temperatures. For all general applications choose the reinforced green PVC suction hose.
How Should I Use This Hose?
- Push the ears forward on the female side fitting.
- Make sure the inside of the fitting is clear of dirt and debris.
- Insert the male fitting into the female fitting
- Pull the ears back and apply pressure to lock down the ears.
- When the ears can't go down any further, you're locked.
- To release the fittings, pull the ears forward and pull the fitting out.
Camlock Connectors Are Also Known As:
- Quick Release Hydraulic Couplings
- Quick Connect Camlocks
- Quick Disconnect Fittings
- Camlock Hose Shanks & Barbs
- Quick Hose Shanks & Barbs
Camlock Fittings Are Time Savers:
Camlock & Groove Couplings are probably the world’s most commonly used quick connect couplings because of the great variety of applications. This can be best illustrated by looking at a few uses within a typical petrochemical process plant. Here's a few processes:
- Solids - Aluminum couplings can be used to join piping carrying solids, powders or pellets. The system can then be easily disconnected if blockages occur.
- Tablet Presses - For hygienic applications, couplings can be electropolished and fitted with food quality seals. The seals can easily be removed for steam cleaning.
- Process - couplings are particularly effective in the rapid changing of lines to mixing vessels in pilot plants, saving time compared with flanged or threaded fittings.
- Storage - Cam & Groove couplings are a standard option on IBC containers to allow rapid filling and emptying even with aggressive chemicals. Stainless Steel or polypropylene couplings are resistant to most acids and corrosive solvents.
